Over Cate5e reaches up to 100m
|

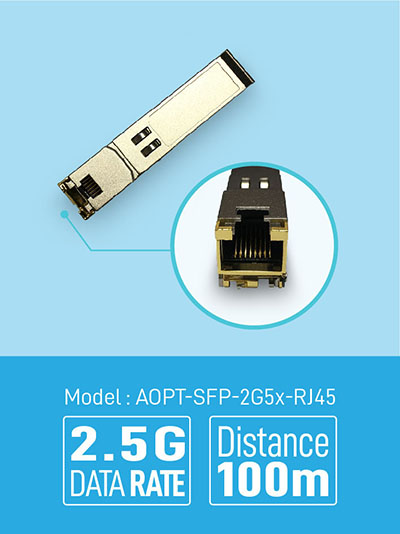

2.5Gbps Copper SFP Transceiver over Cate5e reaches up to 100m |
|
Features
- Supports 2.5Gbps links up to 100m (Cat5e Cable)
- Low Power Consumption
- IEEE 802.3/u/ab/bz compliant
- SFF-8431 and SFF-8432 MSA Compliant

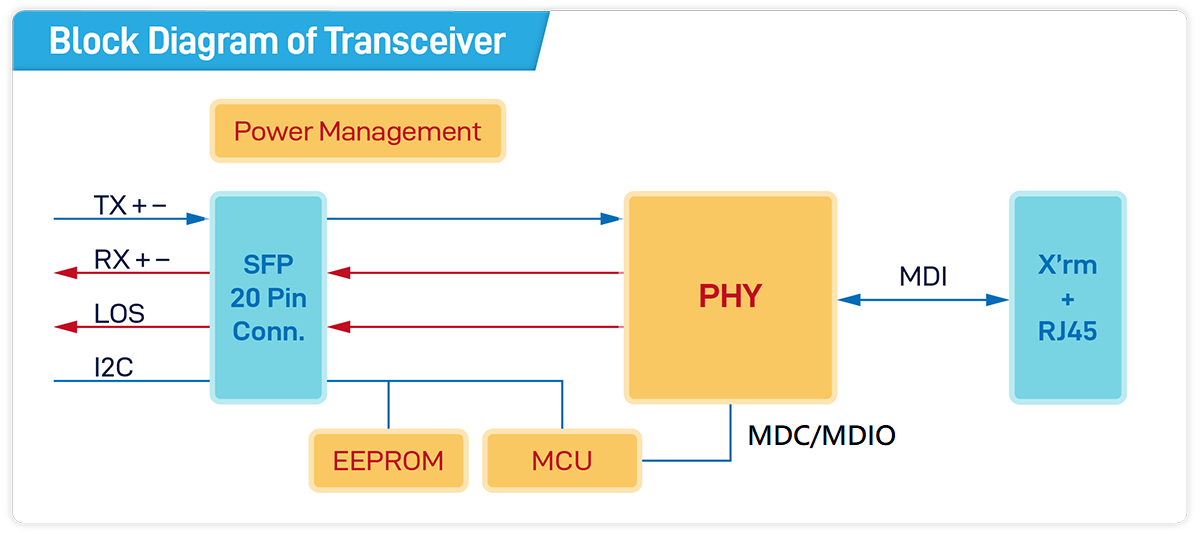

- Access EEPROM/PHY IC via 2-wire Serial Bus
- I2C to MDIO Bridge (Support IEEE 802.3 Clause 45)
- Fast Retrain and EMI Cancellation Algorithm
- Compliant with RoHS
- +3.3V Single Power Supply
- Operating Case Temperature:0°C to +70°C and -40°C to +85°C
|
|
|
|
|
Applications
- 802.11ac Wave-1 access point connectivity
- Data Center Migration
- 2.5Gbps Ethernet over Category 5e Cable
- High speed I/O for file server or high-end workstation
- Switch/Router to Switch/Router Link
|
|
|
|
|
|
|
|
| |
|
|
